0.96 inch OLED, OLED Display

0.96 inch OLED, OLED Display

Enhance your Arduino projects with our OLED display module, featuring a vibrant 128×64 LED display. Compatible with various control chips including Arduino, 51 Series, MSP430 Series, STM32/2, CSR IC, and more, this module offers versatile integration options.

Specification

• 128*64 LED display module for Arduino, supports many control chip.
• Fully compatible with for Arduino, 51 Series, MSP430 Series, STM32 / 2, CSR IC, etc.
• Ultra-low power consumption: full screen lit 0.08W
• Super high brightness and contrast are adjustable
• With embedded driver/controller
• Interface type is IIC

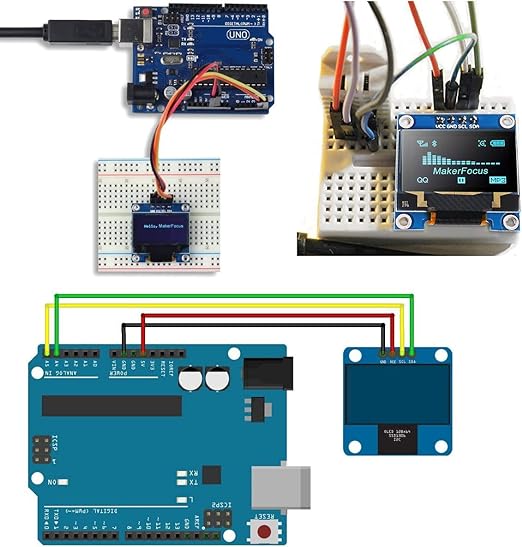

• Pin Definition: GND, VCC ,SCL, SDA
• Pins: 4 pins
• Voltage: 3V ~ 5V DC
• Working Temperature: -30 ° ~ 70 °
• Drive Duty: 1/64 Duty
• High resolution: 128 * 64
• Panel Dimensions: 26.70* 19.26* 1.85mm/1.03*0.76*0.07 inch(approx)
• Active Area: 21.74* 11.2mm /0.86*0.44 inch(approx)
• Driver IC: SSD1306.
